Align MiniGRS Flybarless System : HEGGRS01

Special design for ALIGN small helicopters. It's light and simple.

Support the latest new ALIGN A10 Radio (10-channel/A.BUS system) for the best working operation.

Support T-REX 250/450/470/500 models, no need to setup, outstanding flight performance for the beginner or 3D pilot.

Support JR DSM2 and Spektrum DSM2/DSMX satellite. Built-in Futaba S-FHSS 2.4GHz support for Futaba S-FHSS transmitter.

Specification:

Operating voltage range: DC 3.5~8.4V

Operating current consumption: <100mA @ 4.8V

Rotational detection rate: ±300°/sec

Rudder yaw detection rate: ±600°/sec

Sensor resolution: 12 BIT

Swashplate Support: 120° CCPM Swashplate

Mode Support: T-REX250, T-REX450, T-REX470, T-REX500

Receiver Support: ALIGN A10(A.BUS), Futaba S-FHSS, DSM2/DSMX

Operating temperature: -20° ~ 65°

Operating humidity: 0% ~ 95%

Comply with RoHS

Size: 37.6x22.4x13mm

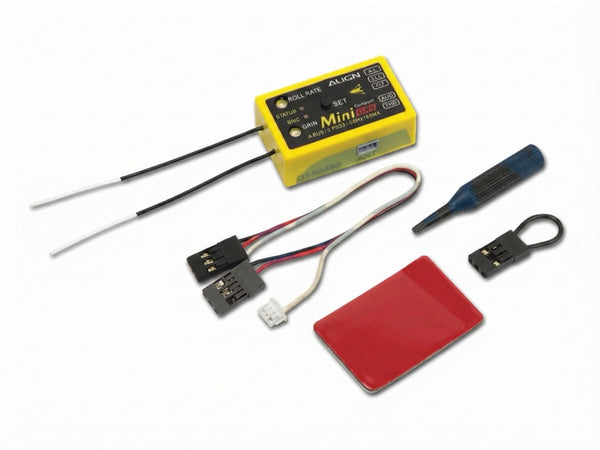

Accessories:

MiniGRS electronics board set x 1

MiniGRS Signal Wire x 1

MiniGRS Binding Plus x 1

Plastic flat screwdriver black x 1

Double Sided Tape x 1
