Align DS820 High Voltage Brushless Servo - Unpackaged : HSD82002T-UP

** PLEASE NOTE THIS IS A BRAND NEW UNIT REMOVED FROM A COMBO DEAL **

Designed specifically for helicopters,utilizes brushless motor for fast speed, high torque and super efficiency reaction, allowing helicopter to perform with faster and higher precision. Brand new high voltage brushless servo equipped new CNC machined aluminum case, not only exhibited top of the line servo aesthetics, but also combine heat sink function and best protection for the servo.

• Utilizes brushless motor design for fast speed, high efficiency. And with the absence of brush wear, the longevity of servo is greatly increased.
• Supports 8.4v high voltage to provide optimal speed and torque performance of the brushless servo.
• Designed specifically for helicopters, with highest specifications on the market: 0.055sec/60°ultra fast speed and 23kg-cm monstrous torque, allowing helicopter to perform with faster and higher precision.
• Ultra high signal resolution for excellent precision and smoothness.
• Hardened high strength superalloy gears that increase the lifetime.
• Supports both analog and digital control signals.
• Suitable for T-Rex 550/600/700/800 cyclic and rudder use.

Specification:
Stall torque: 22kg.cm(7.4V), 23kg.cm(8.4V)
Motion speed: 0.06sec/60°(7.4V), 0.055sec/60°(8.4V)
Rating voltage: DC 7.4-8.4V
Temperature range: -20°C ~ +60°C
Dimension: 40 x 20 x 39mm
Weight: 70g

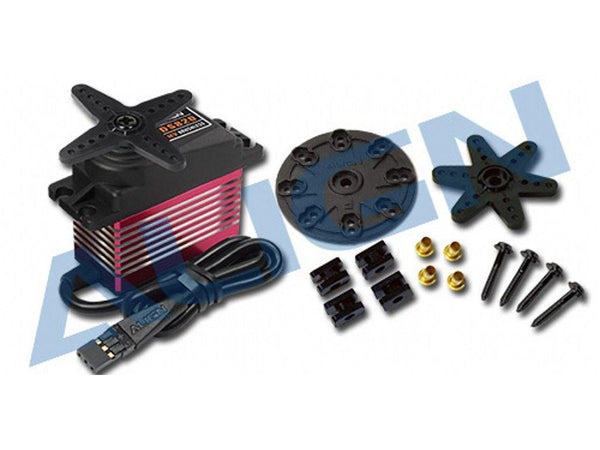

Accessories:
DS820 High Voltage Brushless Servo x 1
Servo Arm x 1
DS615/655 Servo Arm Set x 1
Socket Botton Head Screw x 4(M2.5x10mm)
