For very small models, using JST connectors for servo. Remote USB (included). No standard receiver connectable. Only one connector for a DSMX or DSM2 satellite.
NEW High-performance CPU
Latest generation CPU for Brain2 best performances. 4 times more computing power and 5 times more available memory for firmware than our previous generation of Flight Control Units. This has also made it possible to add new features right away, such as Flight Logs, Telemetry, etc. and will allow new features to be added over time, making your investment last longer.? Brain2 CPU image
USB Power Capability
No need to power the model up now to make quick configuration changes, configuration backup, firmware update, view flight logs graphics, view vibrations graph, view Events list, etc. etc. Just plug in the USB port and the Brain2 powers up, with an integrated diode to prevent powering the servo power bus (no need to take the blades out of the blade holder! No battery discharge!). Quick changes have never been so easy.
TRANSMITTER INTEGRATION
INTEGRATION of Brain2 with all radios with full telemetry allows you to adjust any Brain2 parameter and functions directly through specific menus generated by Brain2 on the transmitter’s screen.
INTEGRATED WIRELESS CONNECTION
Models MSH51630 & MSH51632 of Brain2 can connect WireLess Units can connect also wireless to a Windows PC, Android or iOS devices. Apps for Android and iOS are available on Google Play and App Store.
LOGS
With all Brain2 models it is possible to check all important parameters, both, using the realtime feature or reviewing the recoded data after each flight session. User can select which of more than 50 different parameters to log from a menu, 12 different parameters can be logged at same time, up to 50hz sampling.
VIBRATIONS ANALYSIS
Vibrations log of all Brain2 units is a useful tool to check model status in flight. Vibration logging helps diagnose any kind of mechanical problems.
EVENTS
Events are logged inside Brain2 for each flight session and can be reviewed at any time.
TELEMETRY
Telemetry transmission of the most important data of the Brain2 and / or of the devices connected (RPM sensors, ESC & BEC, temperature sensors, etc.) to your transmitter where you can set acoustic, vibration, voice alarms.
FINE TUNING BY DIALS / POTS
In addition to the control of the tail gain via a radio channel, ?It is possible to assign up to other three parameters to transmitter dials or potentiometers and fine tuning the assigned parameter during flight. Then you can land and set the new value as new default value with a simple movement of transmitter sticks.
COMPONENTS TIMERS
It is possible to assign different components up to other dedicated 4 timers (other than the main timer) to monitor their consumption and wear and evaluate when it is time to replace them and reset the relevant timer.
7 OUTPUTS
In addition to the output for Throttle, Tail and three outputs for the Swashplate, a sixth and seventh output allows the control of 4 servos swashplate or tandem rotors together? glow plug ignition control or retractable landing gear control or control of lights, or smoke control, or buzzer activation, or winch control, etc.
MANY, MANY, MANY OTHER FUNCTIONS INCLUDED
Proactive Governor for electric and Nitro/gasser, Autorotation Bailout for electric and Nitro/gasser, Automatic Pyro Compensation, Tail Motor Driven, 4 servo H-4 swashplate, Tandem Rotors heli, Fast servos for swashplate, Flybarred heli, More than 2 blades head, Cyclic Ring, Swashplate Phasing, Infinite modes of Auto Level operation by fine adjustments of Auto Level gain and maximum stabilisation angle, Infinite modes of Rescue operation by fine adjustments of pitch increment and duration, Throttle idle fail safe value for Nitro/gasser, Linearisation of not linear servos (rotating servos) by servo exponentials, Automatic resetting of any drift of stick potentiometers, Tail drag compensation, Pitch Pump, A second loggable RPM input (Tail motor, etc.), External loggable PWM input, External Altimeter input, Pitch Expo (Lightening), Tail Dynamic for belt or torque tube, Quality Of Signal Analysis, Min V to go, Two Auxiliary Output (Aux1/Aux2), Max mAh used and RPM reduction for system without telemetry, Auto diagnosis, Support Request via software, etc. etc.

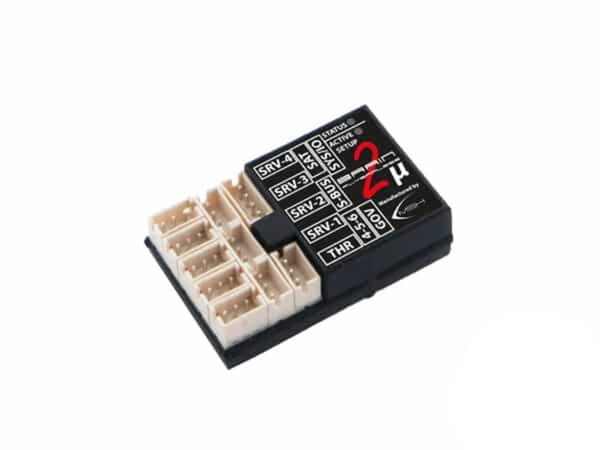

BRAIN2 MICRO SPECIFICATIONS:
- Size (width x length x height) : 19,3 x 31,7 x 10,7 mm
- Weight : 7,4 g
- 10 Connections: 8 Servo type three pole JST male connectors, with 10 signals connections (7 input and/or 7 output) and 6 servo power bus connections 1 SYS four poles JST connector (GND, TX, RX, +V) capable to power internally the unit or an external accessory (Wireless Dongle) 1 SAT three pole JST connector with 3,3V output (input or output) 8 Servo type three pole JST male connectors, with 10 signals connections configurable for: 7 output (6 PWM + TX on SYS TX ), and/or 9 input (6 single PWM from RX, 1 RPM pulses + SAT1 + RX on SYS TX) and 7 servo power bus connections
Serial input for every receiver Brand with very low latency method:
- Spektrum : New bidirectional SRXL v2 (with telemetry)/Bidirectional SRXL (with telemetry)/Unidirectional SRXL/DSM2 22mS/DSM2 11mS/DSMX 11mS/PPM/Remote RX
- Futaba : S.Bus2 (with telemetry) / S.Bus / PPM
- Jeti : EX-BUS (with telemetry) / UDI / PPM+ / PPM-
- Graupner : SUMD (with telemetry) / SUMO
- Multiplex : SRXL + MSB (with telemetry)
- FrSky : S.Bus + Smart.Port (with telemetry)/F.Port (with telemetry)/F.Port2 (with telemetry)/F.Bus (with telemetry)/S.Bus
- JR : X-Bus B
- Hitec : S.Bus
- RadioLink : S.Bus
- TBS : Crossfire (with telemetry) / S.Bus / PPM
- ELRS : Crossfire (with telemetry)
- FlySky : i-Bus
Governor :
- For Electric, Nitro, Gasser
- Autorotation Bailout function (fast RPM recovery from a failed autorotation manoeuvre)
Telemetry input:
From ESC on electric models:
- Castle Creation
- Hobbywing
- Align
- Scorpion
- Kontronik
- YGE
- Spektrum
FrSky
From Temperature sensors on Nitro / Gasser / Turbine models:
From RPM Sensors:
- All sensor brand
- Possibility to monitor separately also the RPM of the tail motor
From Variometer (Altitude, Vertical Speed):
- Jeti on SAT2 connector
- FrSky, Futaba, Robbe, Graupner sensors on Bus
Quality Of Signal (QOS) received:
Quality of Servo Voltage input:
- For all kind of Power input: ESC BEC, external/separate BEC, 2S Lipos/Li-Ion/Li-Fe/NiCd/NiMh, Backup Power Systems
Telemetry output:
- Spektrum, Futaba, Jeti, Graupner, Multiplex, OpenTX, EdgeTX, Ethos, TBS, ELRS, FlySky
Power input:
- Between 4,5V to 15V with one or two (redundant) lines from BEC or 2S Li-Po (7.4V) or 2S Li-Ion (7.4V) or 2S Li-Fe (6.6V) or 5/6/7 NiCd -NiMh
Outputs:
- 5 full programmable servo outputs / ESC outputs. From 50 to 560Hz
- Auto Diagnosis at each power on:
- With result by LED flashes
- With result by initial Swashplate movements
- With result in Events logs
Diagnostic logs:
- More than 50 different parameters can be recorded during flights
- Vibrations are also logged during flights
- More than 50 different types of Events are monitored and automatically logged during flights Already included “on board”:
- Status LED
- USB on board
Parameters setup / regulation:
- Via apps in English, Deutsch, Francois, Russian, Chinese, Italian, Spanish (with the possibility to add, edit, share other languages):
- Windows
- MAC (with emulators)
- Android
- iOS
Via “Integrations” menu:
- Spektrum
- Jeti
- Graupner
- OpenTX
- EdgeTX
- Ethos
Via dedicated transmitters channels (dials):
- In addition to the radio channel dedicated to tail gain, up to three other radio channels can be assigned to one of the 48 internal parameters of the unit
Swashplates:
Included in the package:
- 1x Brain2 Micro
- 1x Remote USB
- 1x Remote USB/Wireless Dongle adapter cable
- 1x Cable Futaba female to JST 50mm for serial RX
- 1x Cable JST to JST 50mm for Spektrum Sat
- 3x Double-sided adhesive
- 1x ‘Safety Notes’ leaflet
-
