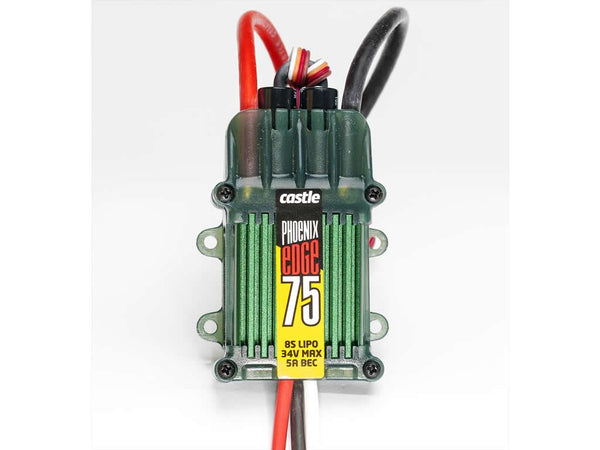

Castle Phoenix Edge 75 32V 75-Amp ESC w/5-Amp BEC : CC10100

Castle Phoenix Edge 75 32V 75-Amp ESC w/5-Amp BEC : CC10100

Helis:

500 class

Fixed wing:

.40 - .52

Technical Specs:

Input voltage: MIN: 2S LiPo MAX: 8S LiPo

Max continuous amperage at full throttle: 75 amps*

BEC voltage (voltage regulator for powering radio and sevos): User selectable choice from 5 to 8.4 volt output

BEC output amperage: 5 amp peak**

Size and Weight:

Width: 2.0" (50.8mm)

Length: 2.8" (71.9mm)

Height: 0.9" (23.2mm)

Weight w/wires: 4.0 oz (113.4g)

Weight w/o wires: 2.5 oz (70.9g)

Programmability:

Fully programmable Castle feature set using Castle Link USB adapter (available as an option) and freely downloadable Castle Link Windows software.

Castle Field Link Programming Card (sold separately) compatible for select functions.

Connectors:

Battery and motor connectors sold separately.

Tools needed for installation:

Soldering iron and solder to attach bullets to motor wires and battery connector to power wires.
