Align BeastX Microbeast PLUS Flybarless System - Unpackaged : HEGBP301T-UP

** PLEASE NOTE THIS IS A UNIT REMOVED FROM AN ALIGN COMBO, SO NO PACKAGING IS INCLUDED **

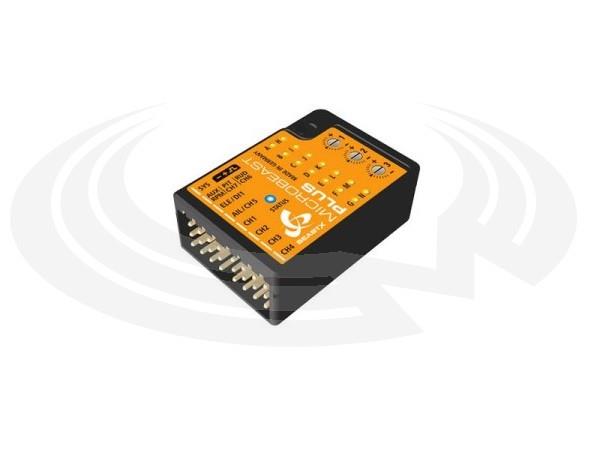

Align BeastX Microbeast PLUS Flybarless System : HEGBP301T-UP

Align supplied version of the popular Microbeast PLUS Flybarless System from BeastX. As supplied in many Align combo's.

MICROBEAST PLUS is based on the popular MICROBEAST and starts the next level of the BEASTX flybarless revolution. MEMS sensors of the latest generation measure the aircraft‘s rotational movement with unprecedented precision and transmit the data digitally and in real time to the control system. These new sensors are insensitive to typical vibrations of a model helicopter. The housing made of plastic composite material keeps the weight of MICROBEAST PLUS sensationally low.

MICROBEASTPLUS and MICROBEASTPLUSHD work with the world‘s proven EasySetup of BEASTX. The sophisticated setup can quickly be done everywhere and no expensive programming box or computer is needed. So many settings can be changed simply and easily at the flying field.

Further options are available with the optional USB2SYS interface and the StudioX software package. MICROBEAST PLUS can be kept up to date by using the update functionality and advanced pilot can thus customize the unit specifically to their needs. StudioX for Windows & Mac is available for download at www.beastx.com

Contents:

• MICROBEAST PLUS
• Receiver connection cables
• 3M adhesive pads
• Adjustment tool
• Printed instruction manual

Features:

Servo centre pulses:

• Swashplate: 1520µs
• Rudder: 1520µs, 960µs, 760µs

Servo pulse rates:

• Swashplate: 50 - 200Hz (Or higher [e.g. 333Hz] using the App or StudioX software)
• Rudder: 50 - 560Hz

Swashplate mixing:

• mCCPM, eCCPM: 90, 120, 135, 140
• Swash phasing (by using StudioX)

Input signals:

• Single channels
• PPM serial pulse
• SRXL (JR XBus, SUMD, M-Link...)
• Futaba S.Bus/S.Bus2
• Spektrum Remote Receiver* (DSM2/DSMX)
• * with Spektrum Remote Receiver adapter

Input Voltage: 3.5 V - 8.5 V DC (Operation with 2 cell LiPo possible)

Processor: 32 BIT ARM

Sensor: 6-Axis MEMS (Gyro + Accelerometer)

Dimensions: 36 x 25 x 14 mm

Weight (w/o wiring): Approx 11g
